100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	FAMOUS
Certification:	ISO9001:2008;CE
Model Number:	OWN

Payment & Shipping Terms:

Minimum Order Quantity:	200 square meters
Price:	USD5-10 Per square meter
Packaging Details:	Seaworthy packings into container or bulk vessel
Delivery Time:	Based on client's needs
Payment Terms:	L/C,T/T
Supply Ability:	2000,000 square meters per month

Contact Now

Detailed Product Description

Features:	Fire,Water,Sound,Weather Proof ,etc.	Moisture Resistance:	YES
Core Material:	Polyurethane，rockwool	Length:	2.44m
Fireproof Grade:	A1	Application:	Warehouse, Workshop, Garage, Factory And So On
Certificate:	ISO 9001,CE,ASTM,EU,US,AU,NZS,etc	Sound Insulation:	YES
Thickness:	40/50/75/100/120/150/200mm	Thickness Of Steel:	0.3/0.35/0.4/0.5/0.6/0.7/0.8mm

Rock wool polyurethane edge-sealing roof panel (FASEC)has excellent fire resistance

Field of employment

Modern standard workshops, breeding farms, convention and exhibition centers, stadiums, airports, logistics and warehousing and other construction industry plants and civil building roofs.

Thickness of plating(mm)
50,65,75,100mm

Fireproof performance
Grade A1

Product features
Using polyurethane side sealing technology, the plate is fireproof and has excellent moisture-proof performance.
Four waves of corrugated to increase the robustness of the board.
The inner plate can use aluminum foil instead of color steel plate to improve the high temperature and corrosion resistance of the product.

Types and advantages of steel plates

Material selection:
Stainless steel plate, color steel plate, aluminum-magnesium-manganese plate, specific materials can be customized according to customer requirements, color steel plate thickness and color.

ADWANTAGES

· Light weight, 10kg ~ 14kg / m2 , equivalent to 1 / 30 of brick wall.

· Good heat insulation, sound absorption and sealing performance.

· The construction period can be shortened by more than 40%.

· Bright color, beautiful appearance, no need to decorate the surface.

· With high strength, it can be used as enclosure structure, load-bearing structure, bending resistance

and pressure resistance, and general houses no need use beams and columns.

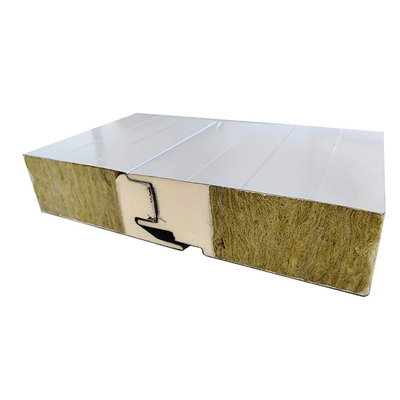

Connection type

METALSNADWICHPANEL
Steel Thickness	0.15-0.78 mm
Core Thickness	50/75/100/150/200mm
Core Material	Rock wool/Glass wool/EPS/PU
Effective width	Roof: 950mm/980mm Wall: 950mm/1000mm/1150mm
Length	According to customer's request, less than 11.8m
Structure	three layers: (1) upper layer is steel sheet, (2) the inner layer is rock wool/Glass wool/EPS/PU
EPS density	40(kg/m³)
color	White grey, blue or refer RAL
Parts	Steel line for easy connect one by one Film covering in order to protect the steel of panels
lifetime	15 years
Character	Light in weight, heat insulation, water proof, environmental
Use	factory buildings, storages, exhibition halls, gymnasiums etc.
Packing	Packing in shipping on container or according to your demands

100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1 3

100mm Rock Wool Polyurethane Edge-Sealing Roof Panel for Fire Resistance A1 4
